Extreme Low Light Digital Vision
The model: AN/VSS-502 is the next generation military driver night sight periscope with image fusion. It was designed by Wärtsila JOVYATLAS EUROATLAS in Germany according to armed forces requirements and meets all military standards. The company has extensive experience and a track record of night vision equipment since 1962.
The next generation driver night sight periscope fit for MBTs, APCs, AFCs, special purpose vehicles and can replace former image intensifier driver night sight systems, day sight periscopes or other camera systems. The digital vision periscope system consists of state-of-the-art sensors and electronic components designed under the measures of the latest available technology. The components are selected to fulfil the requirements of MIL-STD 810 and MIL-STD 1275 equipment. The electronics and sensors are housed in a modular body which is protection class IP68K and filled with nitrogen. The system is extreme robust, reliable and well protected against harsh environmental condition like: shock, vibrations, high- and low- temperature, water, sand- & dust. The periscope system is operating 24h at day and night up to night level 5 and can detect most of the battle field laser. The standard configuration has two high resolution camera sensors, long wave infrared and CMOS. The system is available with up to 4 different camera sensors and technologies. All 4 camera sensors can be fused in real-time into one high resolution image and displayed to the driver and vehicle commander. Customer specified options are available on request.

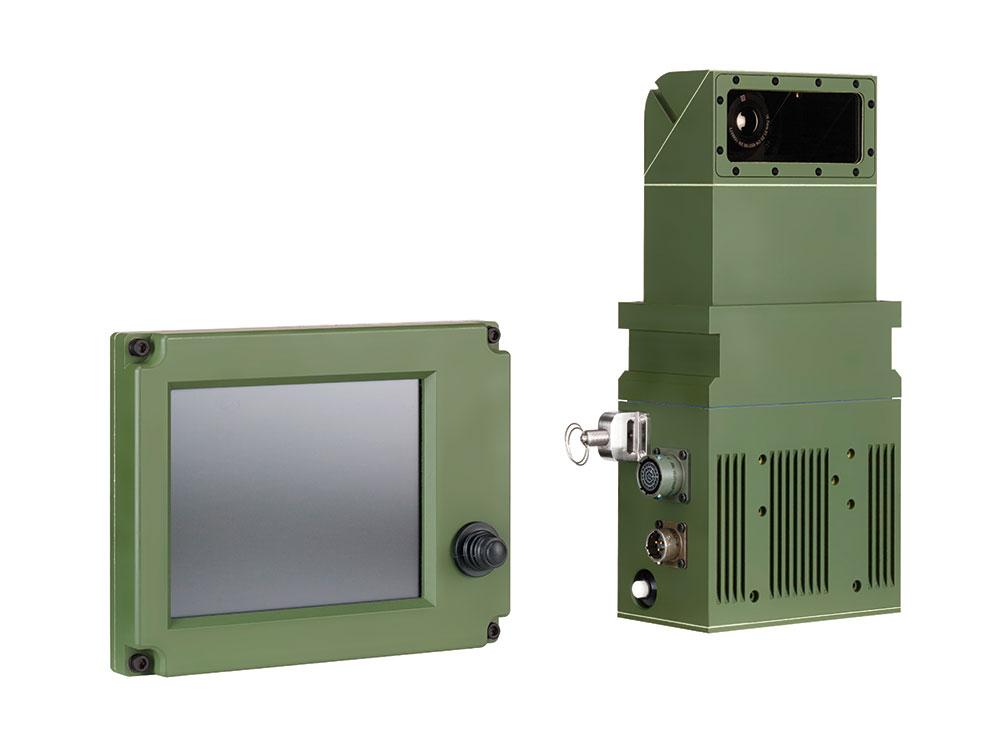

The military vehicle driver sight periscope system consists of:
Periscope housing with computer module and cameras
Monitor cable with protection shield
8.4” TFT monitor with connector and user interface
DRIVER PERISCOPE KEY FEATURES
Combat & safety upgrade
Compatible with many vehicles
Dual camera system, thermal & image intensified
Low lifecycle cost
Easy installation
Passive cooling
Passive cameras, not detectable
Real time Image processing
Soldered high reliable RAM & Flash
Passive cooled CPU & GPU
Operating temp. -40°C to +71°C
Latest advanced technology
High MTBF
20 Years support
