Tracked Logistic Carrier (TLC)
The ACV19 in its Tracked Logistic Carrier variant of the ACV15 & ACV19 Family of Vehicles is designed as a logistic cargo carrier that provides transportation of ammunition, rations, water and general cargo to forward areas in support of Mechanized Infantry and Armored Regiments and operates as part of A1 Echelon (Forward Support).

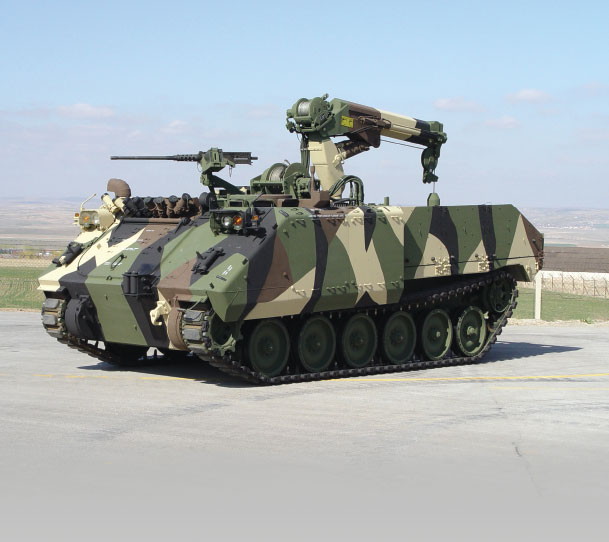

The ACV19 Tracked Logistic Cargo Carrier (TLC) offers an ideal flexible platform for integration of a crane and flat bed for cargo carrying operations. The vehicle can utilize sub systems such as the suspension, power pack, cupola and drivers controls which are common to the ACV15 (ADNAN) FoV & ACV19 120mm Mortar carrier variant. Due to its modern suspension system, high power to weight ratio and low ground pressure the ACV19 TLC is capable of maneuvering cross-country in the most difficult terrain. It has the capability to maintain pace with modern MBT’s, Infantry Fighting Vehicles and Armoured Personnel carriers.
Vehicle is powered with a modern 350-400HP diesel engine and a fully automatic transmission situated on the front right. On the front left sits the driver with his adjustable seat and an individual hatch. He can drive with the hatch open by elevating his seat or he can drive under armour (closed down) using his four glass periscopes. A driver night device is also available.
TLC vehicle has an armored crew compartment for the driver and commander with an additional ‘jump seat’ provided for a third soldier. The crew compartment provides all around ballistic protection up to STANAG Level 4, which is equal to the in service ADNAN fleet of vehicles, and artillery shell splinters.
The cargo area volume is 6.0 m², and is capable of cargo loads of up to 6,000 kg. The system can carry cargo loads of materials including ammunition, fuel and rations or up to six pallets of 155mm artillery projectiles. The cargo area is fitted with six fold-down side panels with a tailgate. The fold down panels and tailgate can be left down during driving to accommodate oversized loads without impairing vehicle operation and mobility. The cargo area features numerous tie downs to securely stow ammunition pallets, replacement components or other cargo.
For battle field replacement of major components and for loading and unloading cargo the TLC is equipped with a crane with a maximum reach of 3.26 m and traverse of 190. The crane’s 1,600 kg rating allows removal of power packs from other vehicles as well as ADNAN. The maximum load rating is 1,600 kg at maximum reach. The crane can be operated by a remote control unit or can be operated from the commander’s hatch via manual control levers. An engine driven hydraulic pump provides the Hydraulic power for the crane.
A self-recovery winch, with a 50 m cable length and 100 KN (10,200 kg) pulling force is also available and can be controlled manually or with the remote control.
The vehicle is also fitted with a cupola mounting either a 7.62mm MG or 12.7mm MG or 40 mm grenade launcher.
ACV19 TLC has full capacity to be adapted to Fitter and Repair roles. It can be used to transport replacement components directly to a disabled vehicle perform essential repair operations with all necessary equipment stowed on board. Replacement of power pack assemblies, suspension components, ect. can be accomplished with the crane.
