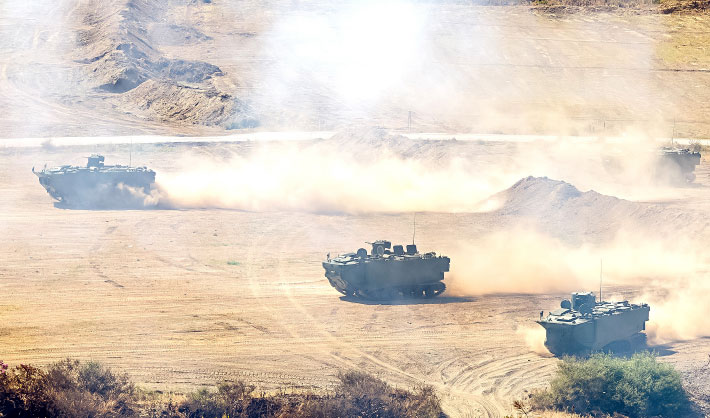

Turkish Navy`s ZAHA Marine Assault Vehicles Impress at EFES 2024
The EFES-2024 Combined Joint Live-Fire Exercise, one of the largest planned exercises of the Turkish Armed Forces, was conducted from May 9 to 30 in the İzmir Bay and Doğanbey Live-Fire Exercise Area. The exercise also included the participation of the ZAHA Marine Assault Vehicle (MAV), which FNSS indigenously developed as part of the projects carried out by the Secretariat of Defence Industries to meet the needs of the Turkish Armed Forces.
The ZAHA Marine Assault Vehicle project was initiated in 2017 by the Secretariat of Defence Industries (SSB) and the main contractor, FNSS, to fulfill the armored Armored Amphibious Assault Vehicle requirement of the Turkish Naval Forces Command. The project involved the delivery of a total of 27 vehicles, including 23 Personnel Carriers, two Command and Control vehicles, and two Recovery vehicles. The kick-off meeting for the project took place on March 31, 2017, followed by the critical design review meeting on October 19, 2019. Within approximately two years, subsystem and qualification tests were conducted, and prototype vehicle production was completed. On March 4, 2021, a test preparation and review meeting was held. Over the course of two years, a total of 44 system-level qualification tests were successfully carried out. On February 7, 2023, the qualification process for the vehicles was finalized with the approval of the Secretariat of Defence Industries. Subsequently, on February 20, 2023, serial production acceptance activities commenced with the participation of officials from the SSB and Naval Forces Command, and all deliveries were completed by the second quarter of 2023.
FNSS has developed the state-of-the-art ZAHA to cater to the specific requirements of amphibious operations. This advanced amphibious vehicle plays a crucial role in expediently covering the distance between the ship and the hostile shore during amphibious landing operations. It can be launched from the Multi-Purpose Amphibious Assault Ship (LHD), allowing it to cover the distance swiftly and at an exceptional speed. This capability ensures that troops can safely and expeditiously land with the necessary protection and fire support. The ZAHA consists of three variants: Personnel Carrier (equipped with a single antenna), Command-and-Control Vehicle (equipped with four antennas), and Recovery Vehicle (integrated with recovery crane apparatus). However, according to user requirements, at least six vehicles (Personnel Carriers) are also expected to be fitted with mine-clearing line charge systems. The ZAHA Personnel Carriers can also transform into Command-and-Control Vehicles (C2) if required.
The Marine Assault Vehicle features a water-resistant hull, which demonstrates superior amphibious characteristics. The completely sealed unique hull design offers self-righting capability and improves mobility in water. It does not utilize a double or V-hull, as it will drastically affect the performance of the vehicle at sea. The ZAHA MAV weighs 30 metric tons and is equipped with a 600hp front-mounted diesel engine power pack. The engine has a fully automatic transmission system. The vehicle is propelled by two powerful rear-mounted water jets in amphibious mode, which can handle up to sea-state 4. The maximum amphibious speed of the vehicle is 7 knots, while the maximum road speed is 70 km/h.
The ZAHA is capable of maneuvering on a 60% vertical and 40% horizontal gradient, climbing obstacles 90 cm high, and crossing 200 cm-wide trenches. The 8.3-meter-long and 3.3-meter-wide vehicle features a reinforced hull bottom armor, and the thickness of the bottom plate is adjusted to maximize energy absorption. The protection level of the ZAHA can be further improved with add-on applique armor plates. The vehicle is also fitted with a coaxially mounted smoke grenade launcher, an automatic fire extinguishing system, and a dedicated CBRN (Chemical, Biological, Radioactive, and Nuclear) protection system. Notably, the ZAHA holds several distinctions within the Turkish Armed Forces inventory. It is the first and only personnel carrier designed for both land and sea operations. Furthermore, it is the second vehicle of its kind in the world, showcasing its cutting-edge amphibious capabilities.
The ZAHA's firepower is provided by the purposely designed ÇAKA dual remote-controlled turret that can be armed with a 12.7 mm MG (50 Cal) and a 40 mm AGL (Automatic Grenade Launcher).
The ÇAKA Remote Controlled Turret (RCT), which is named after the famous Turkish sailor Çaka Bey, is specifically designed and only manufactured by FNSS for ZAHA. The ÇAKA RCT, which stands out with its corrosion resistance and sealing at the highest level, can be used safely in all weather and sea conditions. Designed as a naval system for harsh sea conditions, this turret incorporates several notable features that distinguish it from ground-based platform turrets, particularly in terms of corrosion resistance and impermeability. ÇAKA is built to withstand the corrosive effects of salty sea water, ensuring its longevity and performance both at sea and on land. Compared to similar manned turrets in service with US Marine Corps Amphibious Vehicles, the FNSS ÇAKA RWS offers greater advantages with its lightweight, better protection for the gunner, target acquisition, reliability, and accuracy, and it occupies less internal volume inside the vehicle.
The ZAHA MAVs are equipped with ASELSAN's Battlefield Management System, allowing for continuous tracking and communication of troops. The Command-and-Control vehicles, responsible for managing amphibious operations on the battlefield, can establish simultaneous communication with 27 ZAHAs. They also ensure uninterrupted communication with TCG Anadolu, the Amphibious Assault Ship (LHD) CMS, enabling joint operations. ASELSAN has developed indigenous troop tracking and communication systems, along with several other subsystems, such as periscopes, tracks, road wheels, and speed reducers, as part of the project.
ZAHA Marine Assault Vehicle a Force Multiplier for the Turkish Navy Amphibious Marine Brigade
As one of the leading armored vehicle manufacturers in Türkiye, FNSS has a rich history of success. Between 1990 and 2005, the company delivered 2250 Armored Combat Vehicles, which continue to serve as the backbone of the Turkish Land Forces Command. Since 2014, FNSS has been actively engaged in various projects for the Turkish Armed Forces, achieving significant milestones. For instance, in 2016, FNSS signed the Anti-Tank Vehicles (ATV/STA) project with the SSB, and with the signing of the second contract, the company delivered around 340 PARS 4x4, and KAPLAN Tracked vehicles equipped with OMTAS and KORNET Remote Controlled Turret systems designed by FNSS, into the inventory.
ZAHA Marine Assault Vehicles can rightfully be considered the finest in their class. Only a select few countries possess such a system, and it is safe to say that the vehicles stand out as the best, incorporating the latest modern advancements. As part of the General Defense Industry program, SSB consistently emphasizes the importance of deploying platforms with superior firepower and operational capabilities, developed independently without reliance on any other country, to support self-sufficiency, particularly in strategic domains. In line with these objectives, FNSS developed and successfully delivered the ZAHA Marine Assault Vehicles capable of meeting the demands of new-generation technologies and requirements.
The ZAHA Marine Assault Vehicle, designed to operate under the most challenging sea conditions, is a testament to FNSS's commitment to developing solutions for unique environments. The ÇAKA Remote Controlled Turret System, a key component of the ZAHA, is designed with a unique focus on corrosion resistance and sealing, setting it apart from other remote turret systems. This design was specifically developed to withstand the harsh conditions of the sea and land, including the corrosive effects of salty seawater.
The successful development and deployment of the ZAHA Marine Assault Vehicle highlight FNSS's dedication to innovation and excellence in meeting the specific needs of the Turkish Armed Forces. The ZAHA project reflects a rigorous process of design, testing, and production that spanned several years, demonstrating FNSS's capacity for high-quality and reliable manufacturing. With its amphibious capabilities, the ZAHA ensures that troops can safely and swiftly move from ship to shore, providing critical support during amphibious landing operations. One of the most remarkable features of the ZAHA is its versatility and adaptability. The vehicle's ability to transform into different variants, including Personnel Carrier, Command-and-Control Vehicle, and Recovery Vehicle, demonstrates its multifaceted utility on the battlefield. This adaptability extends to the potential for equipping the Personnel Carriers with mine-clearing line charge systems, further enhancing their operational flexibility.
The ZAHA's advanced design incorporates a water-resistant hull, superior amphibious characteristics, and a powerful propulsion system capable of handling sea-state four conditions. These features, combined with its robust armor and protective systems, make the ZAHA a formidable asset in both land and sea operations. The vehicle's 600hp front-mounted diesel engine power pack and rear-mounted water jets ensure high performance in diverse environments, while its reinforced hull and add-on applique armor plates provide exceptional protection for the troops it carries. Moreover, the integration of ASELSAN's Battlefield Management System into the ZAHA MAVs ensures continuous tracking and communication, enhancing the coordination and effectiveness of amphibious operations. The Command-and-Control vehicles' ability to maintain seamless communication with multiple ZAHAs and the TCG Anadolu Amphibious Assault Ship further underscores the vehicle's strategic importance.
The ZAHA Marine Assault Vehicle not only exemplifies FNSS's engineering prowess but also represents a significant step forward in Türkiye's defense capabilities. Its introduction into the Turkish Naval Forces Command's inventory marks a milestone in achieving self-sufficiency and reducing reliance on foreign defense technologies. By leveraging indigenous development and production, Türkiye strengthens its strategic autonomy and enhances its national security. In conclusion, the ZAHA Marine Assault Vehicle is a force multiplier for the Turkish Navy Amphibious Marine Brigade, offering unmatched operational capabilities and strategic advantages. FNSS's dedication to innovation, coupled with the robust support of the Secretariat of Defence Industries, ensures that the Turkish Armed Forces are equipped with state-of-the-art technology to meet contemporary and future challenges. The successful deployment of the ZAHA underscores the strength and potential of Türkiye's defense industry, positioning it as a leader in advanced military solutions
